Fabrication Projects

From the first cut to the finished weldment: the tube laser, the sheet laser, and welding and fabrication work in THG’s Greenville, Texas shop.

Request a quoteFabrication overview

Tube laser

The TRUMPF TruLaser Tube 7000 cuts length, copes, holes and weld prep into tube and profile in one operation.

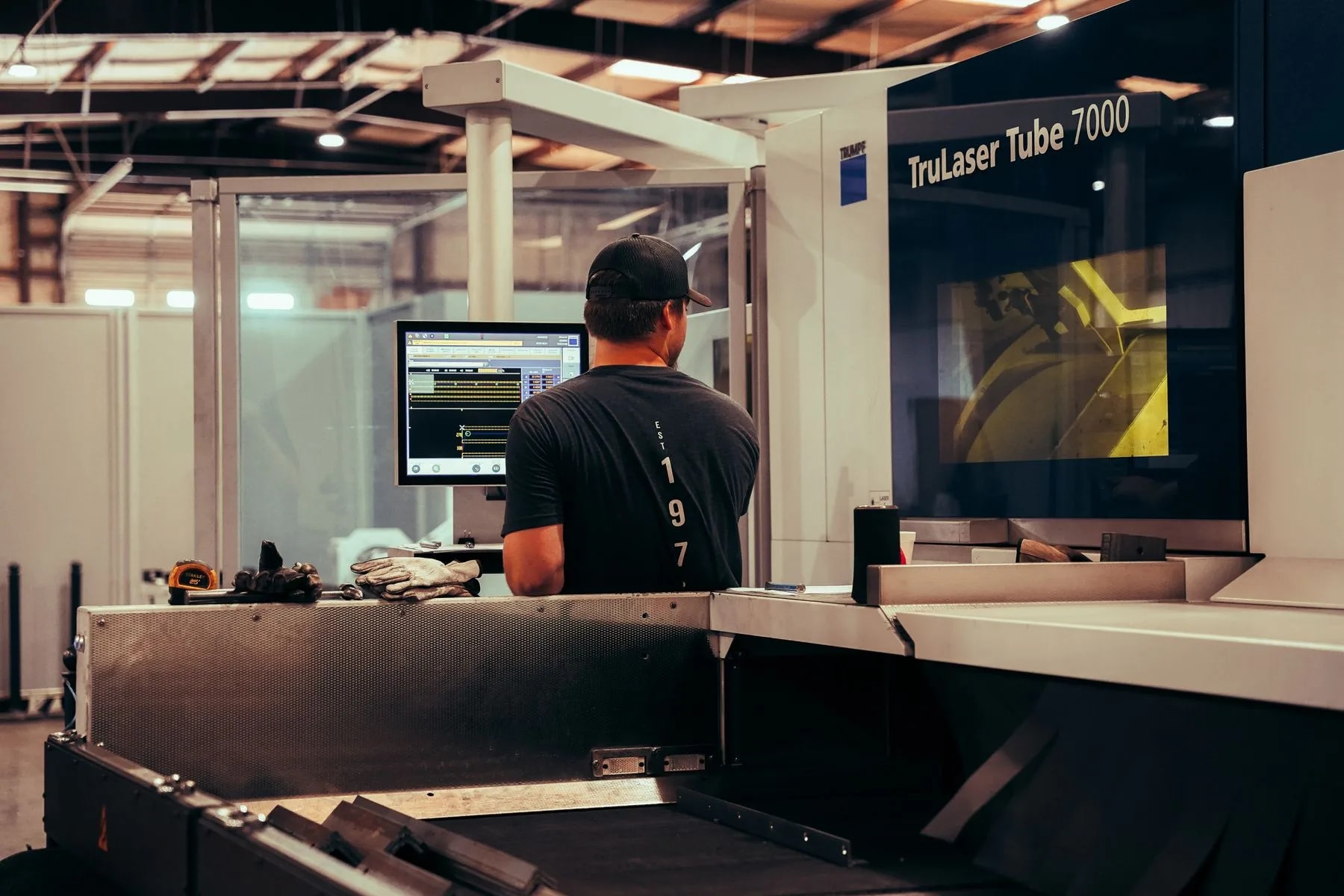

An operator at the TRUMPF TruLaser Tube 7000 in the THG fabrication shop (full-size photograph, opens in a new tab)

Tube laser in the THG shop

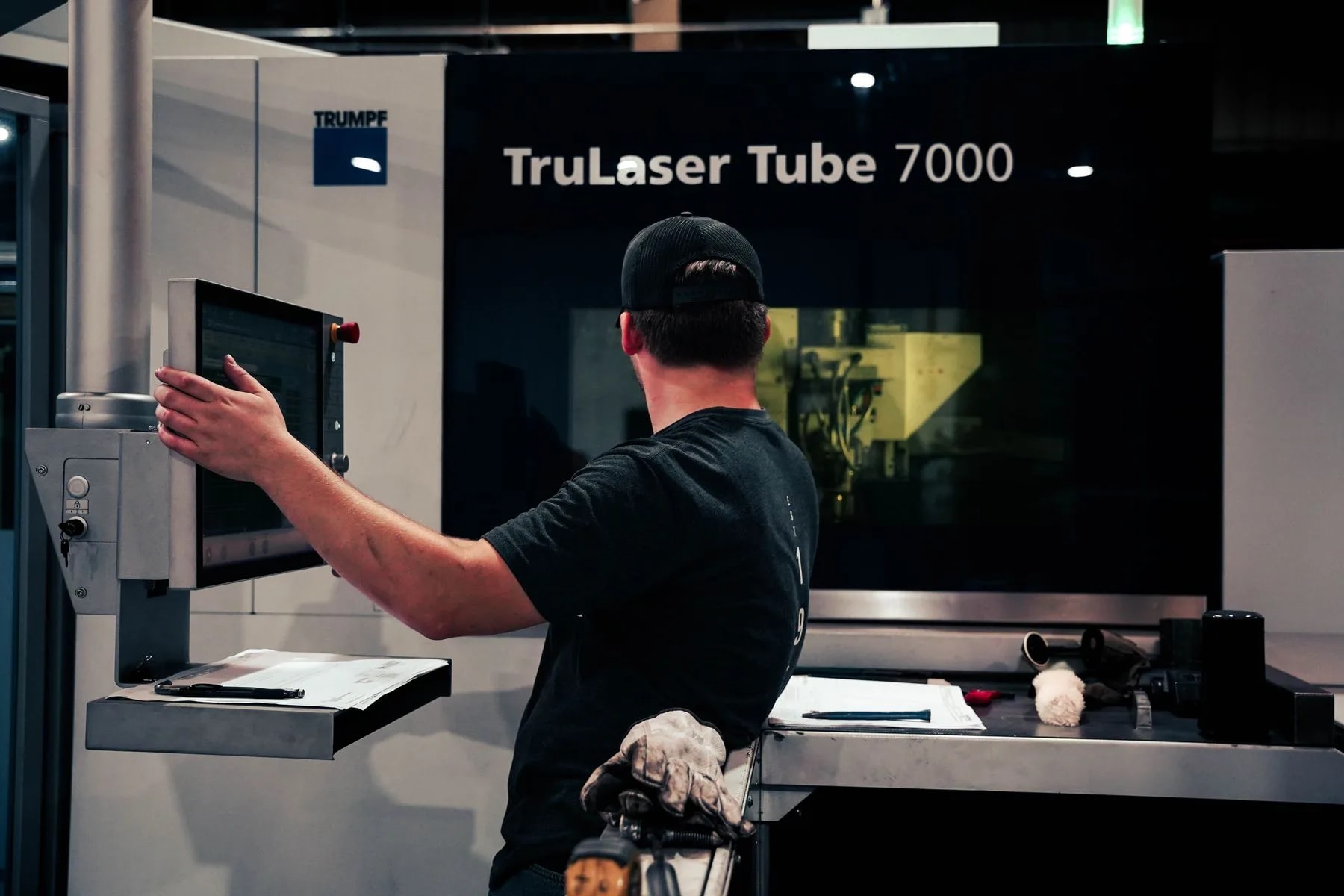

Operator using the tube laser control panel (full-size photograph, opens in a new tab)

At the controls

Laser cutting metal inside the guarded tube laser (full-size photograph, opens in a new tab)

Inside the cutting enclosure

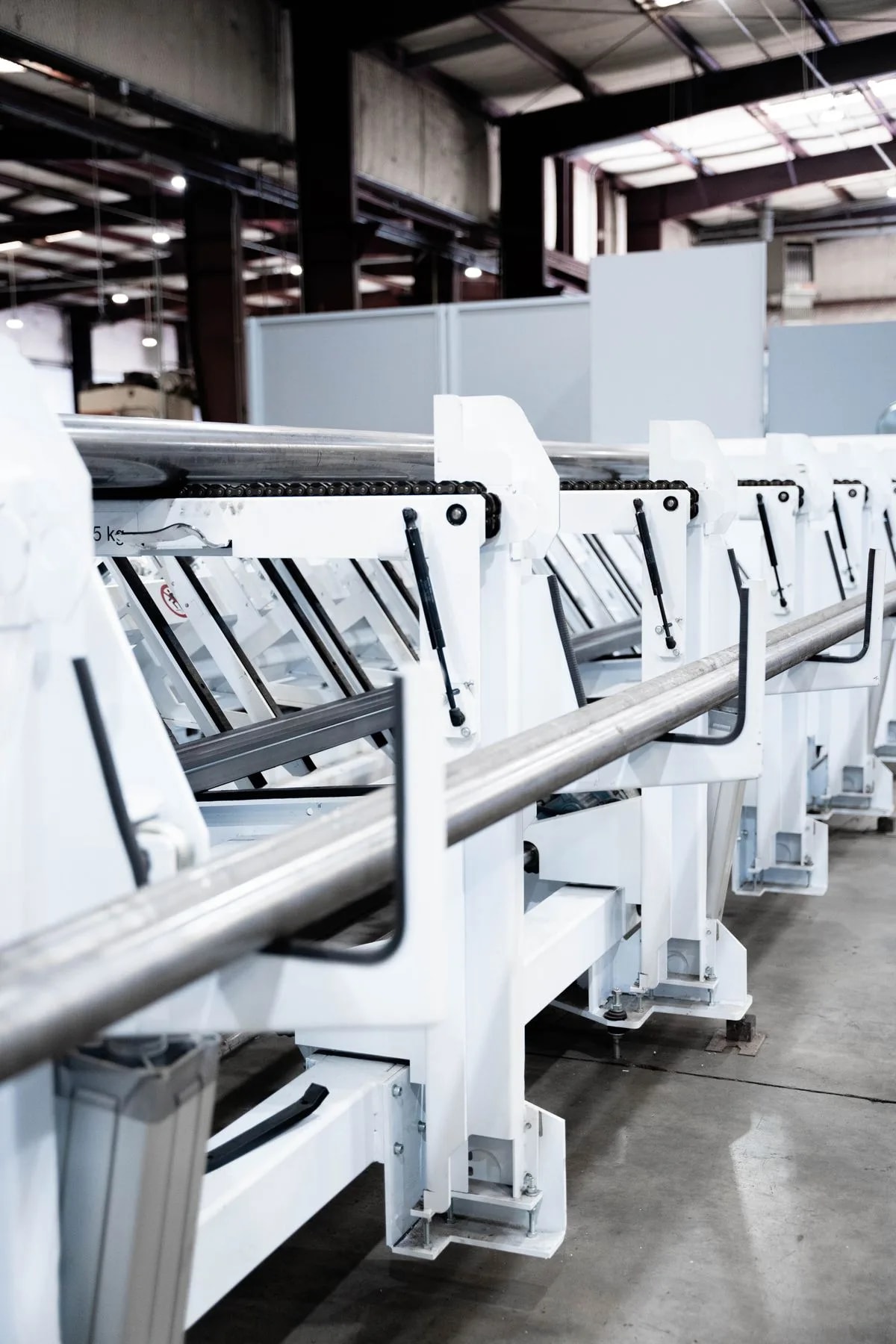

Round metal tubes resting on the tube laser loading supports (full-size photograph, opens in a new tab)

Tube loading system

Sheet laser

The TRUMPF TruLaser 1040 cuts sheet and plate up to 72 x 144 in, loaded and unloaded by a TRUMPF LiftMaster Compact.

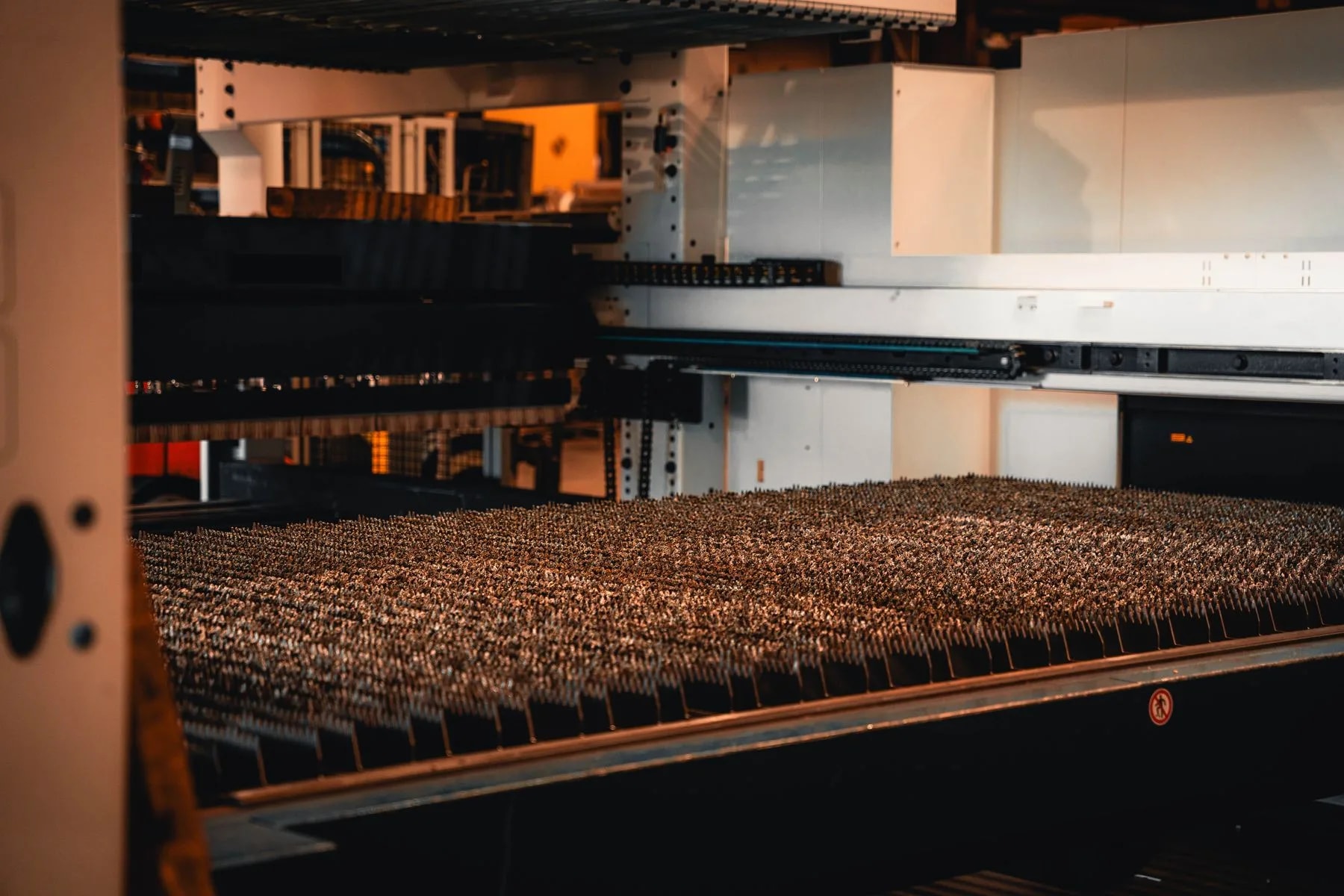

Wide view of the flat-sheet laser support bed and loading equipment (full-size photograph, opens in a new tab)

Flat-sheet laser bed

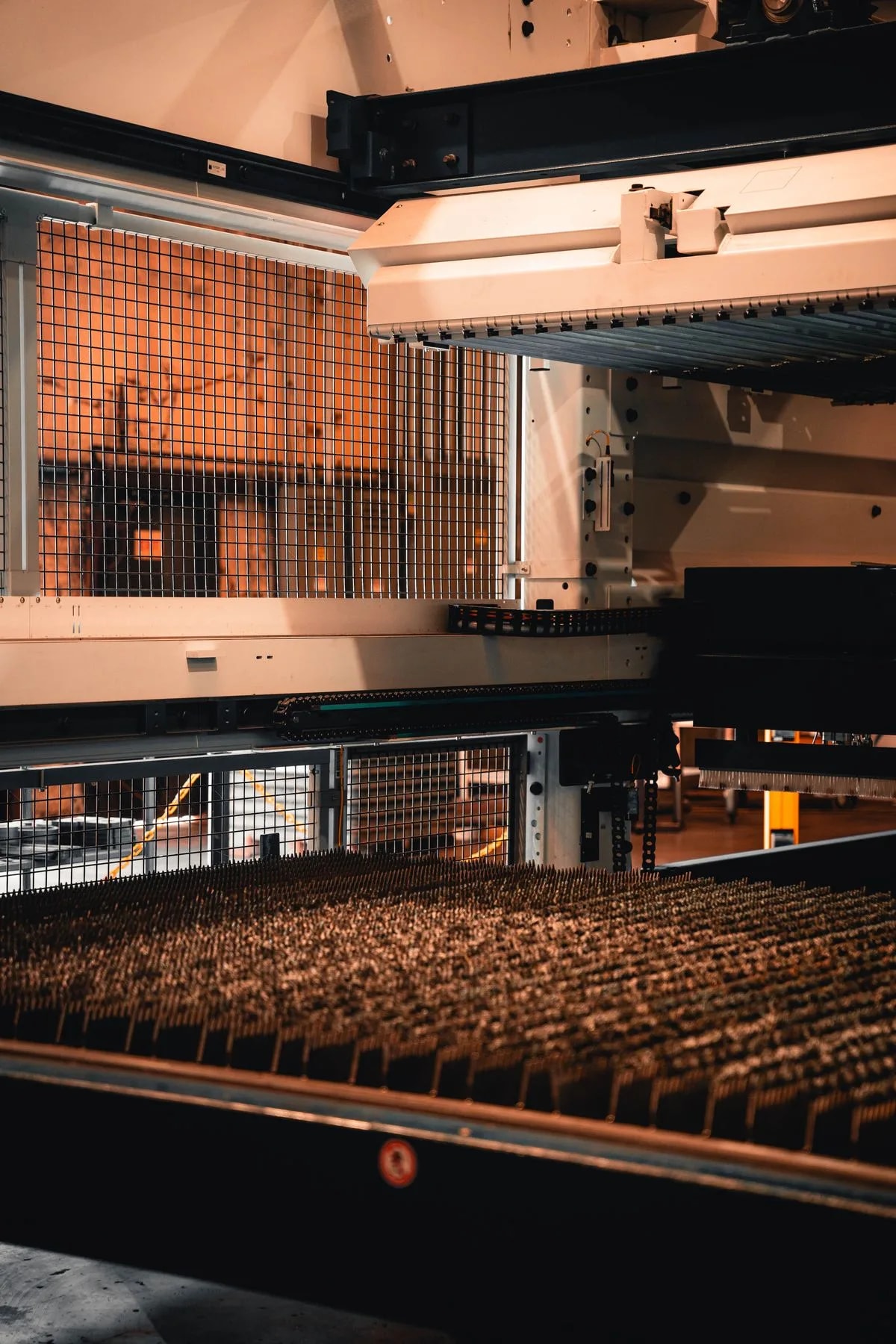

Close view of the flat-sheet laser bed beneath the sheet handling system (full-size photograph, opens in a new tab)

Sheet handling and support bed

Welding and fabrication

Frames, troughs and assemblies, cut, formed and welded in the same building.

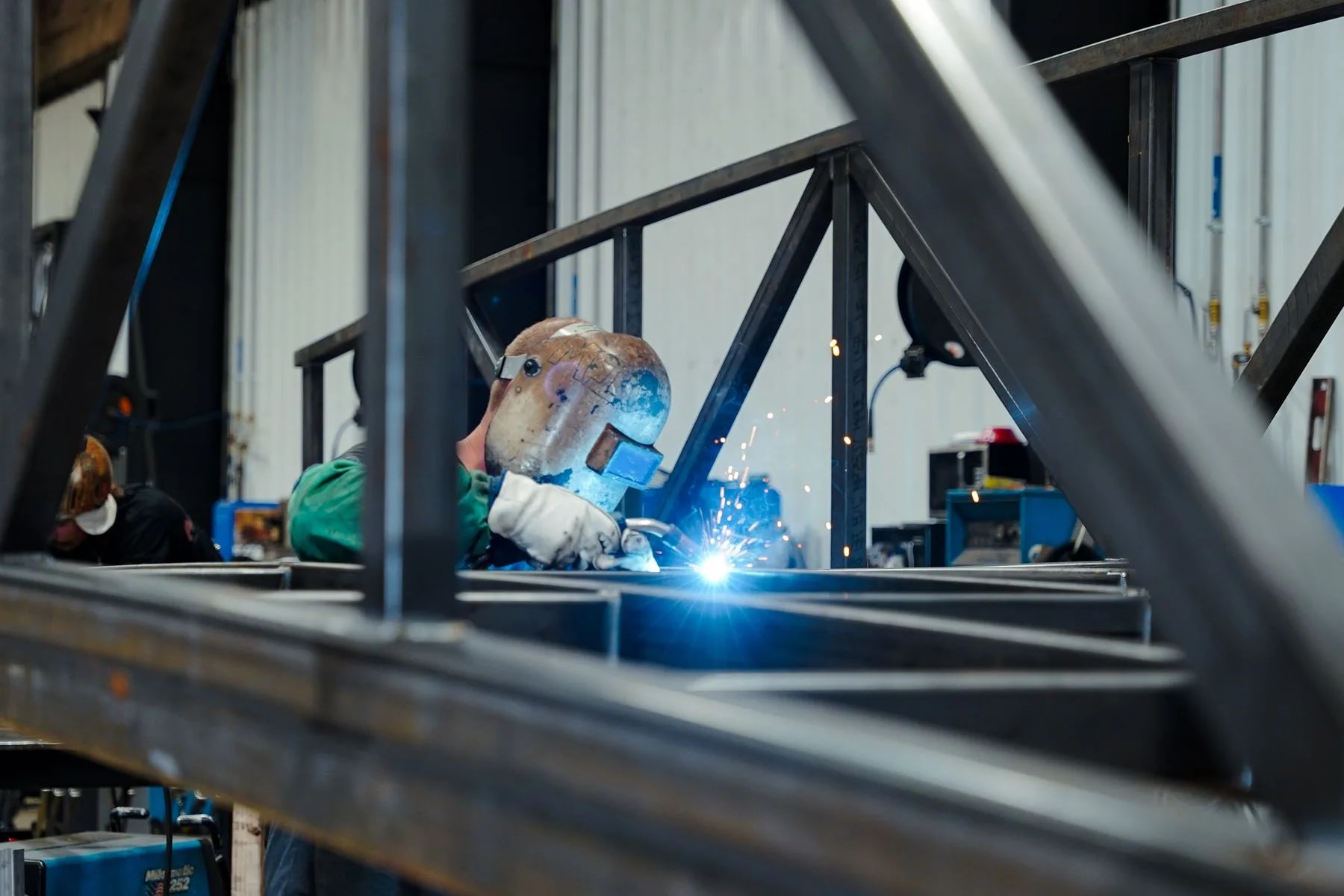

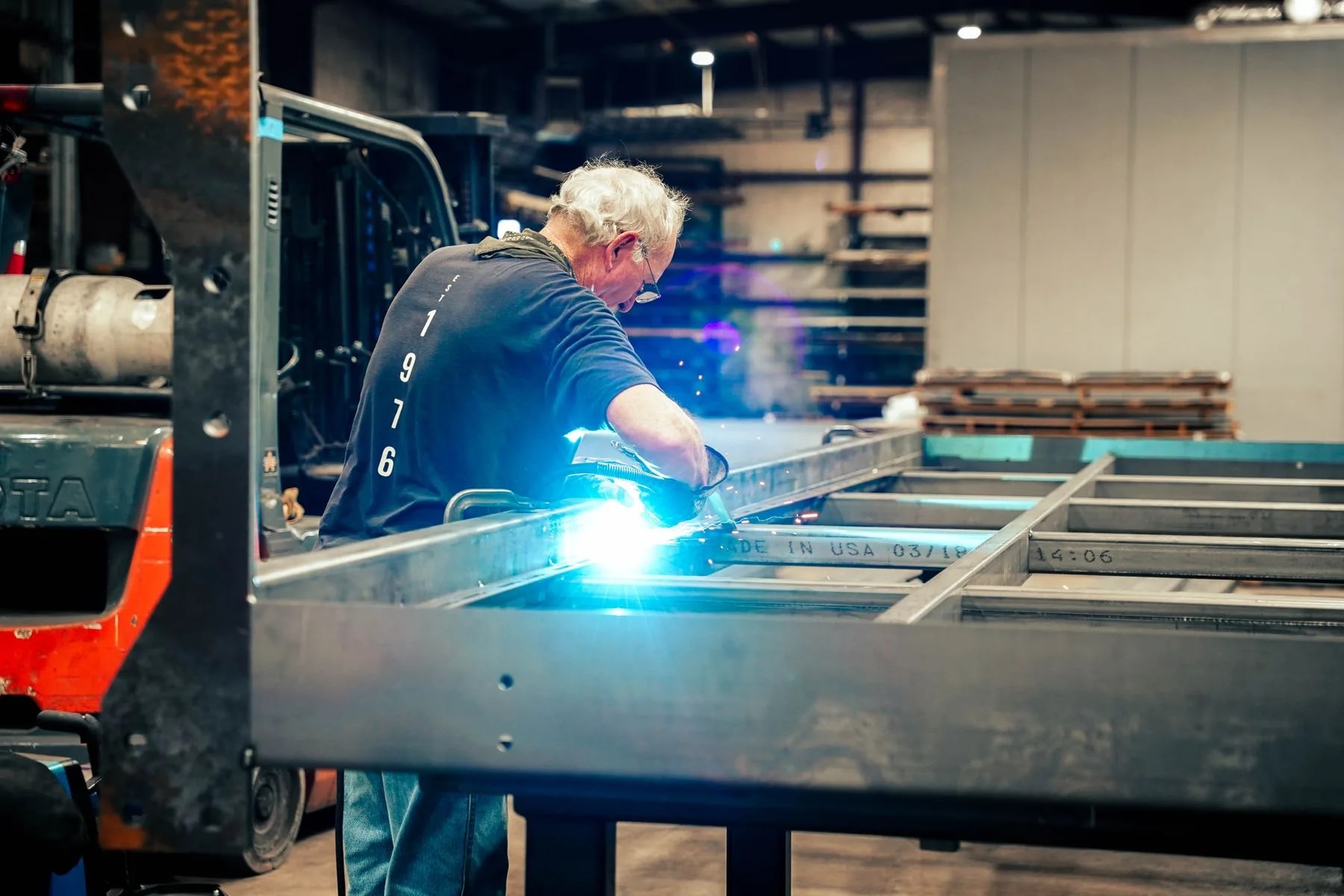

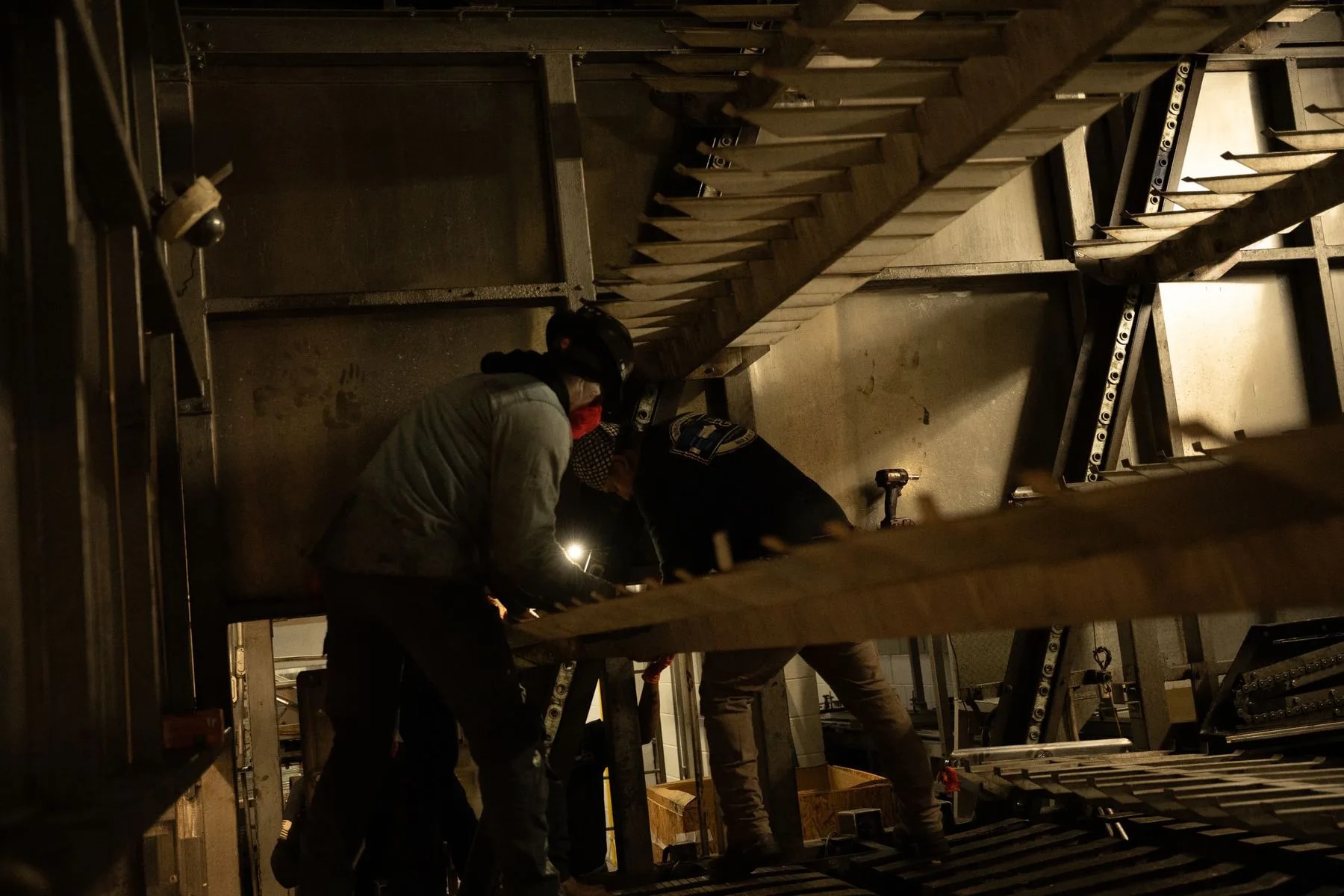

Welder working inside a large steel frame in the THG shop (full-size photograph, opens in a new tab)

Frame fabrication

Close view of a welder joining a metal assembly (full-size photograph, opens in a new tab)

Welding detail

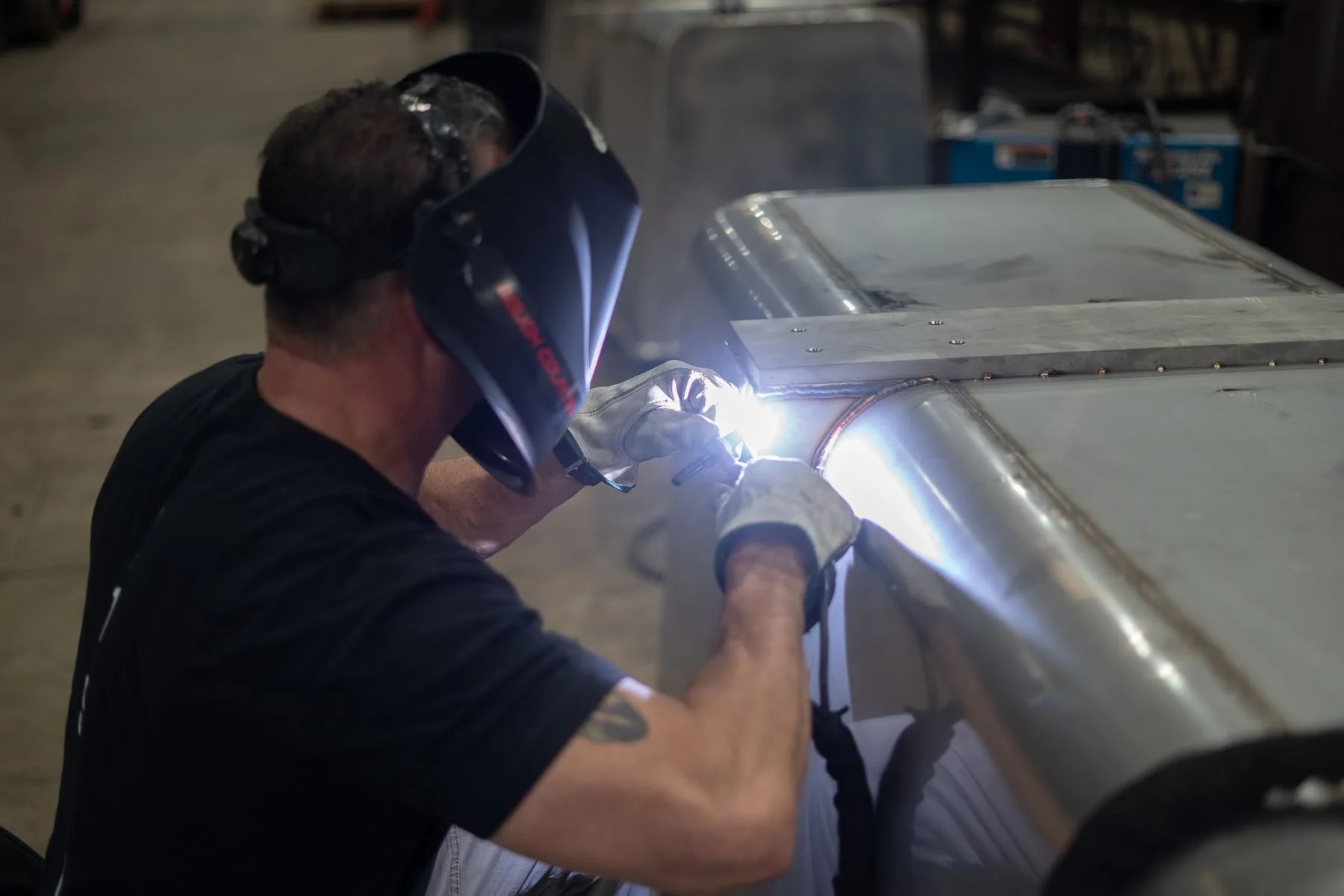

Welder working along the edge of a stainless-steel trough (full-size photograph, opens in a new tab)

Stainless-steel fabrication

Welding a large rectangular steel assembly on the shop floor (full-size photograph, opens in a new tab)

Steel assembly

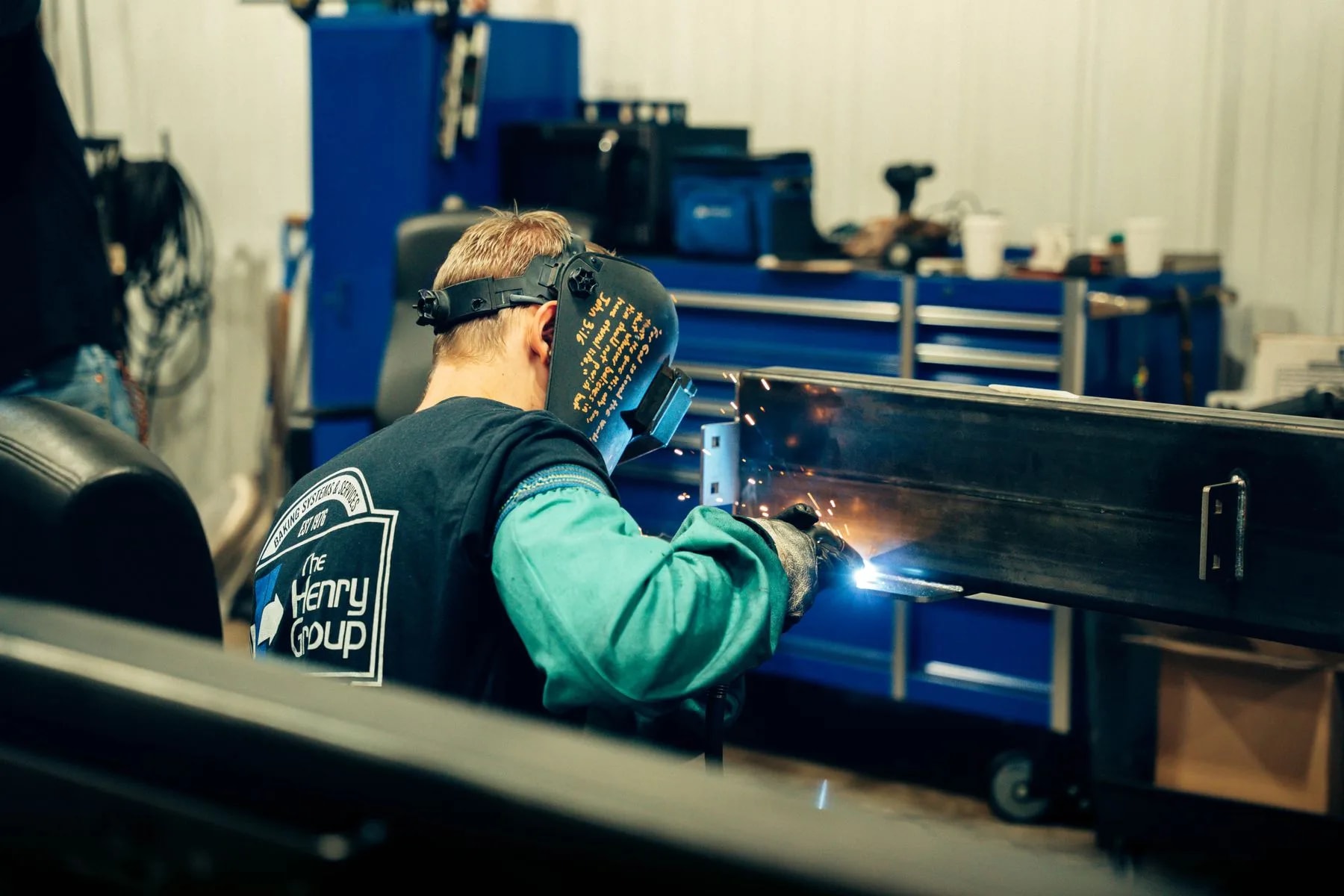

THG welder working on a metal part at a fabrication bench (full-size photograph, opens in a new tab)

At the welding bench

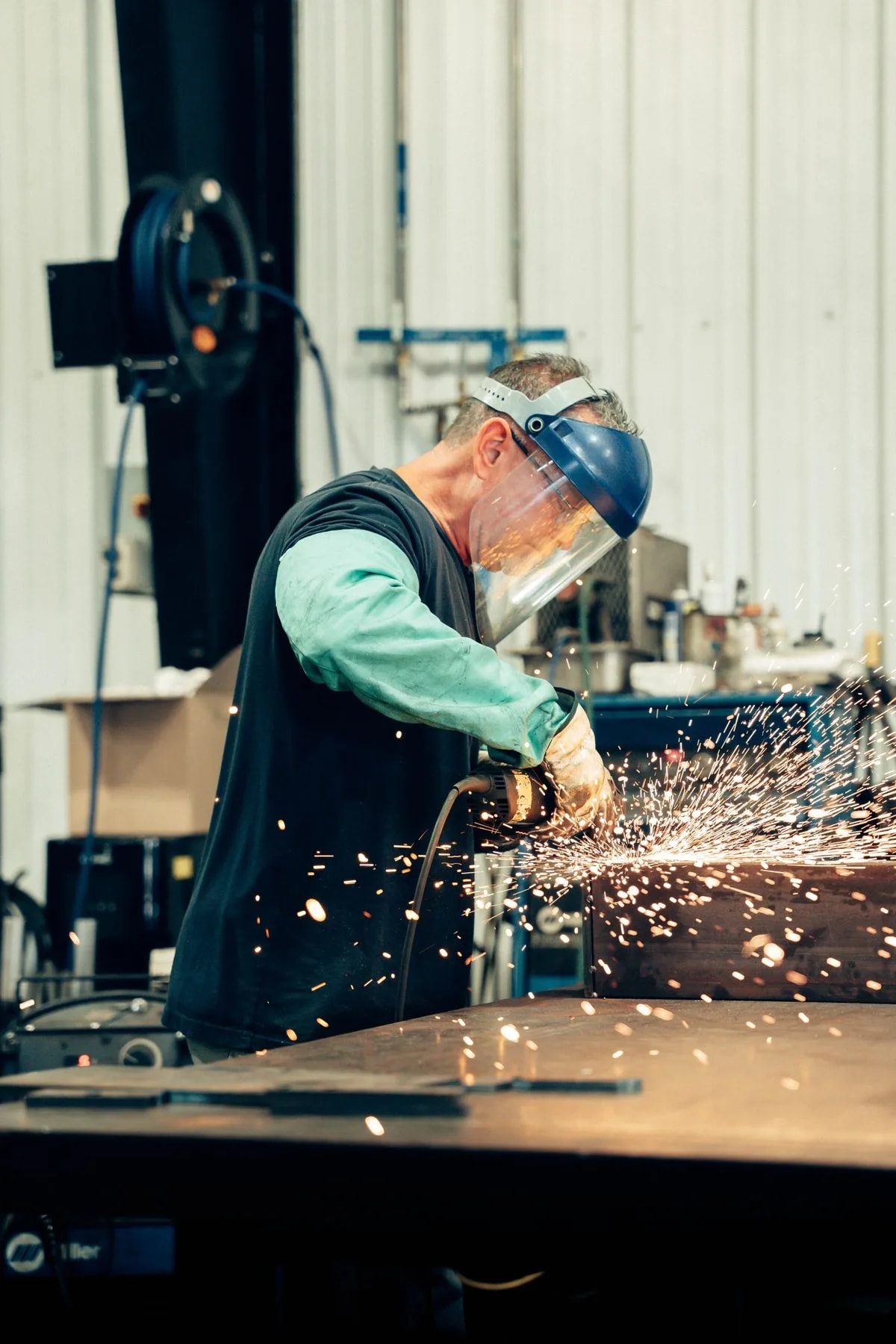

Sparks from finishing a metal part with a handheld tool (full-size photograph, opens in a new tab)

Metal finishing

THG operator working at the press brake (full-size photograph, opens in a new tab)

Forming sheet metal

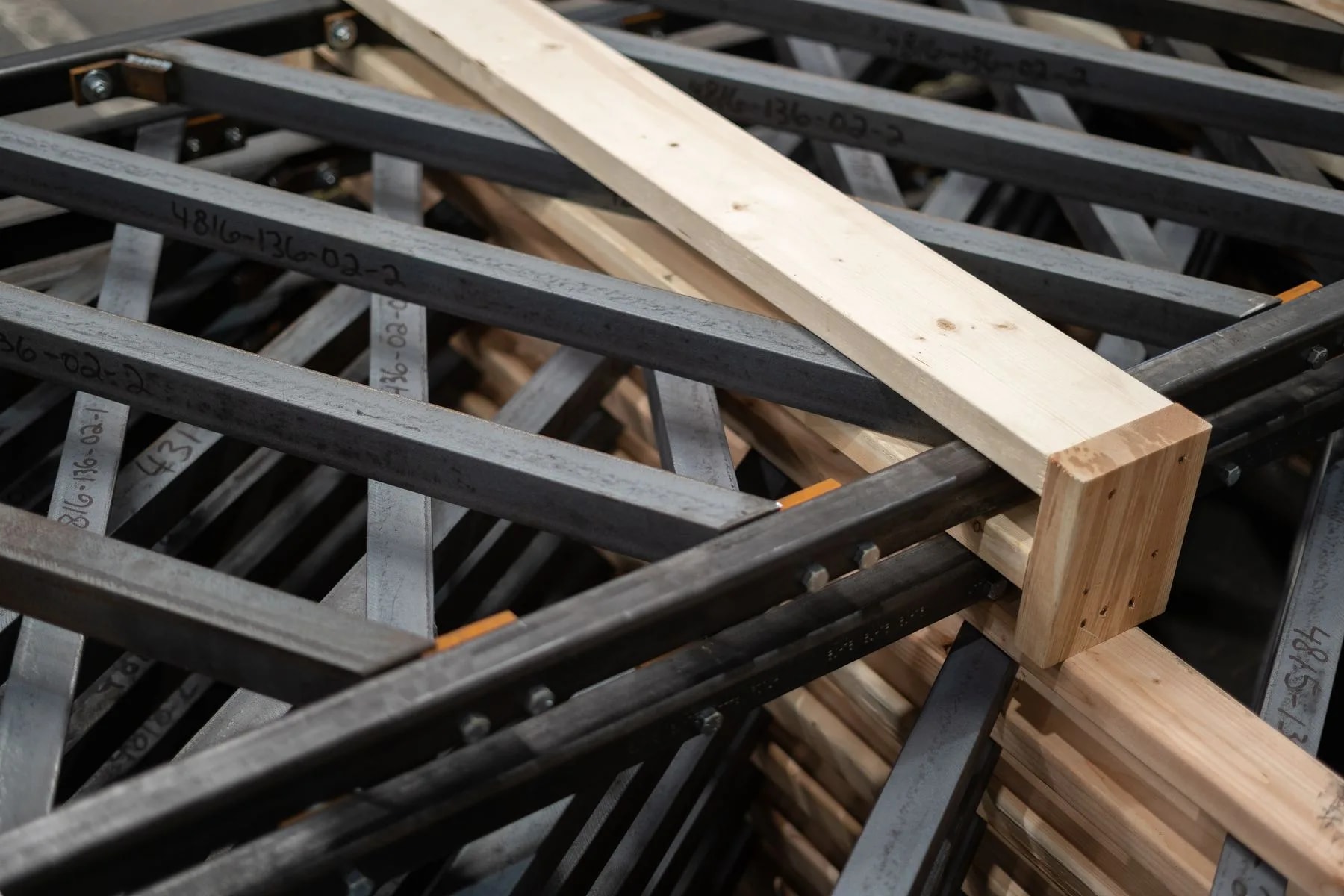

Stacked fabricated steel frames with diagonal cross members (full-size photograph, opens in a new tab)

Fabricated frames

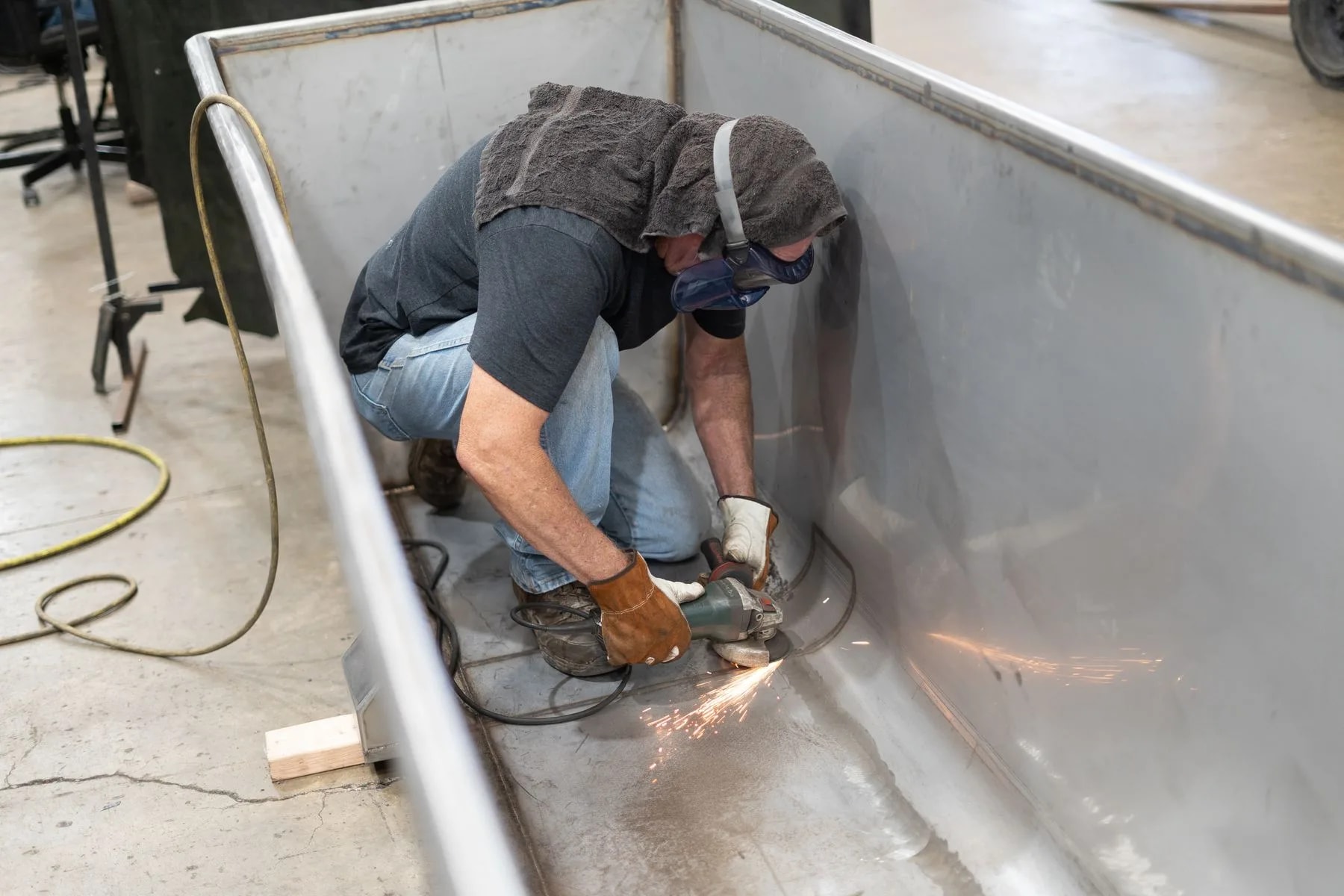

Technician finishing the inside of a stainless-steel trough (full-size photograph, opens in a new tab)

Trough finishing

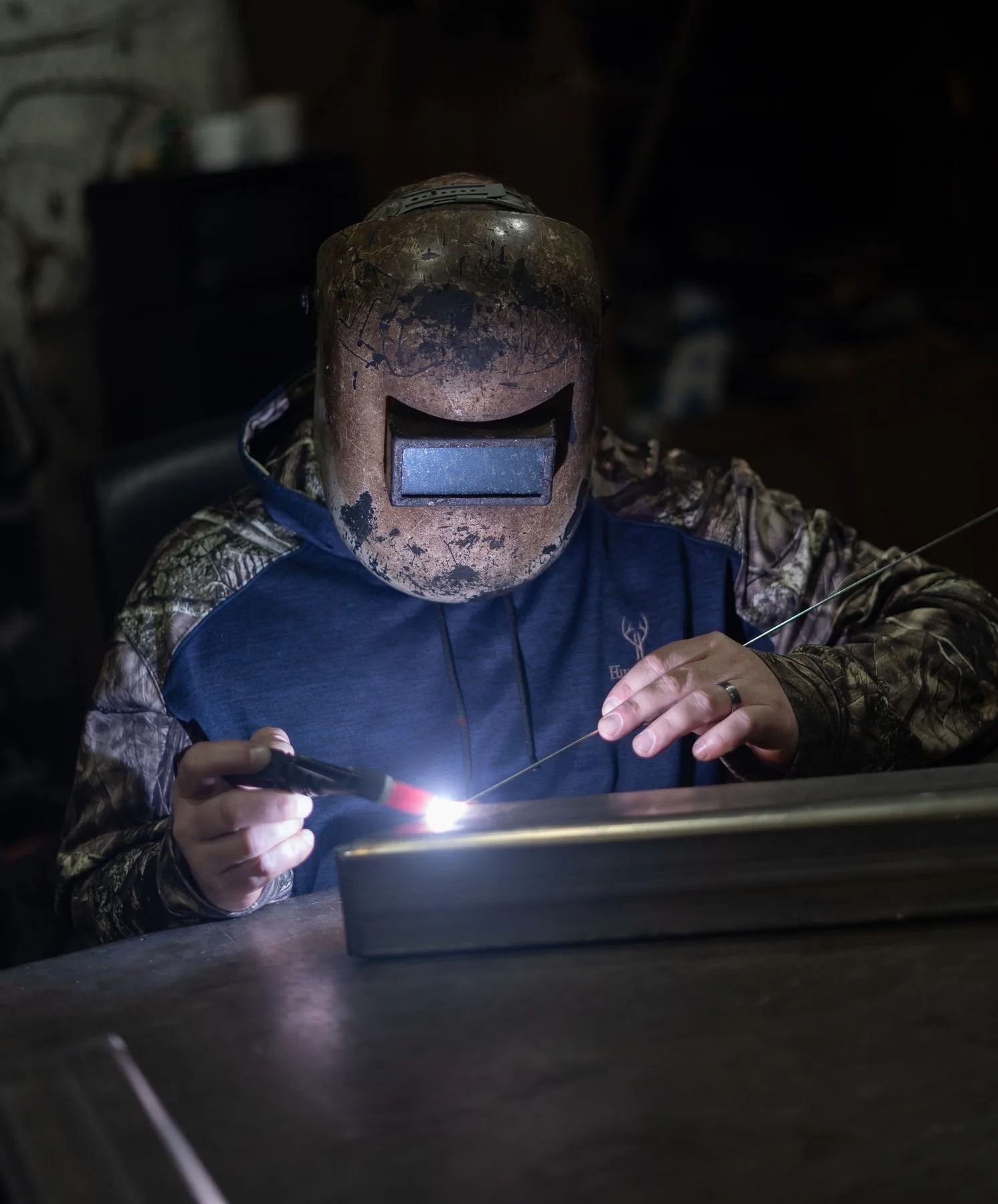

Welder working on a straight metal seam at a shop bench (full-size photograph, opens in a new tab)

Welding a seam

Production lines

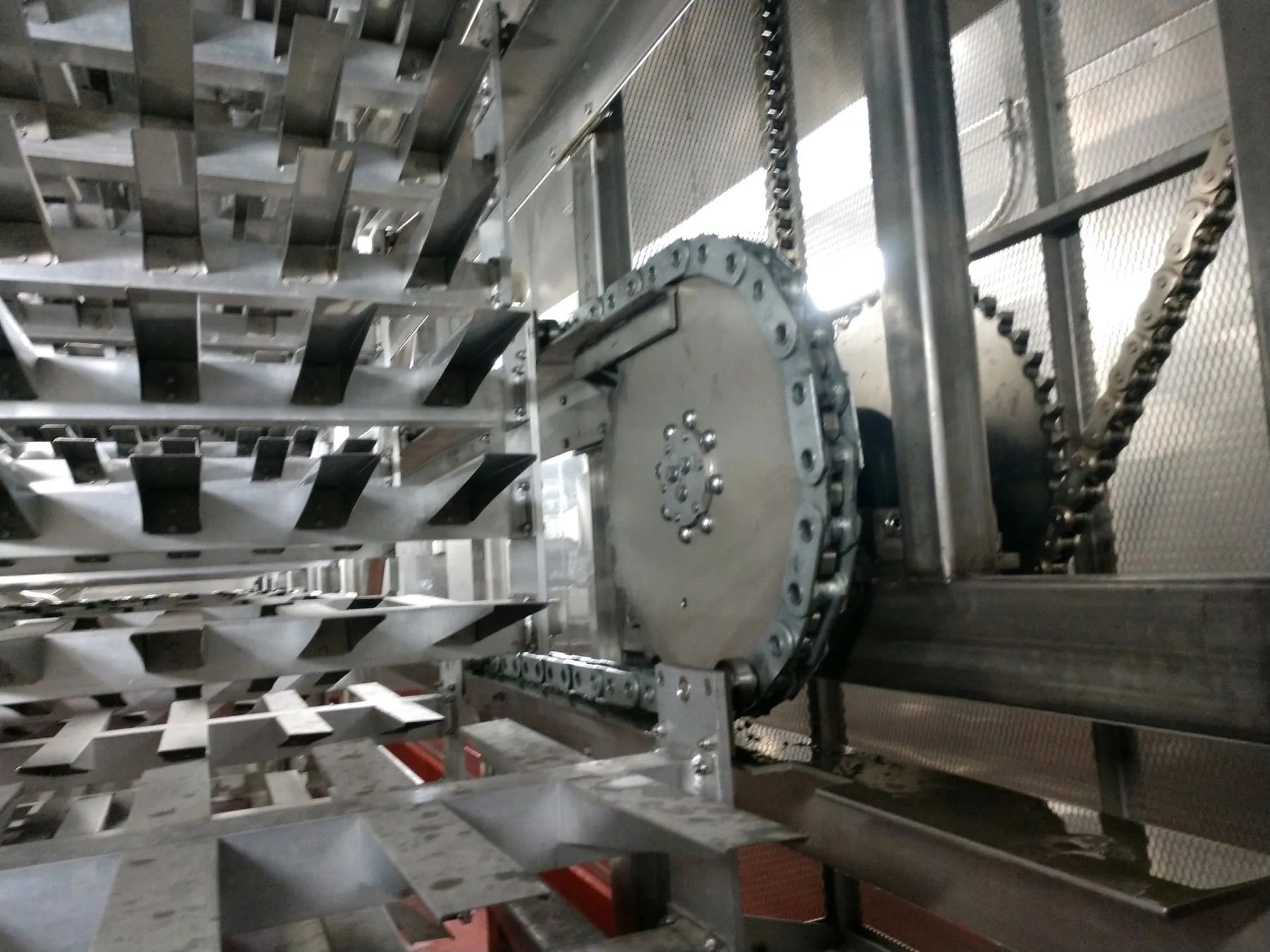

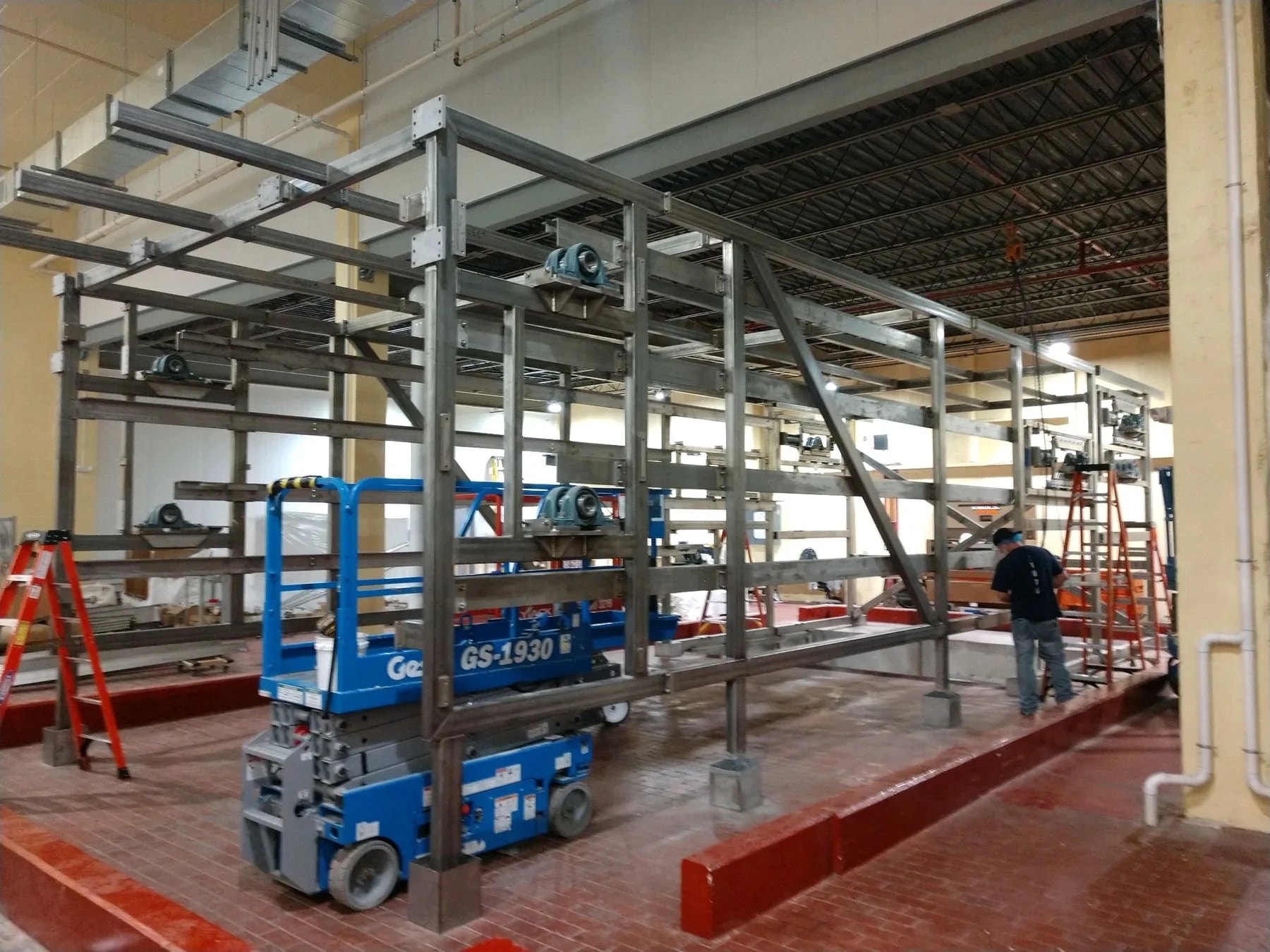

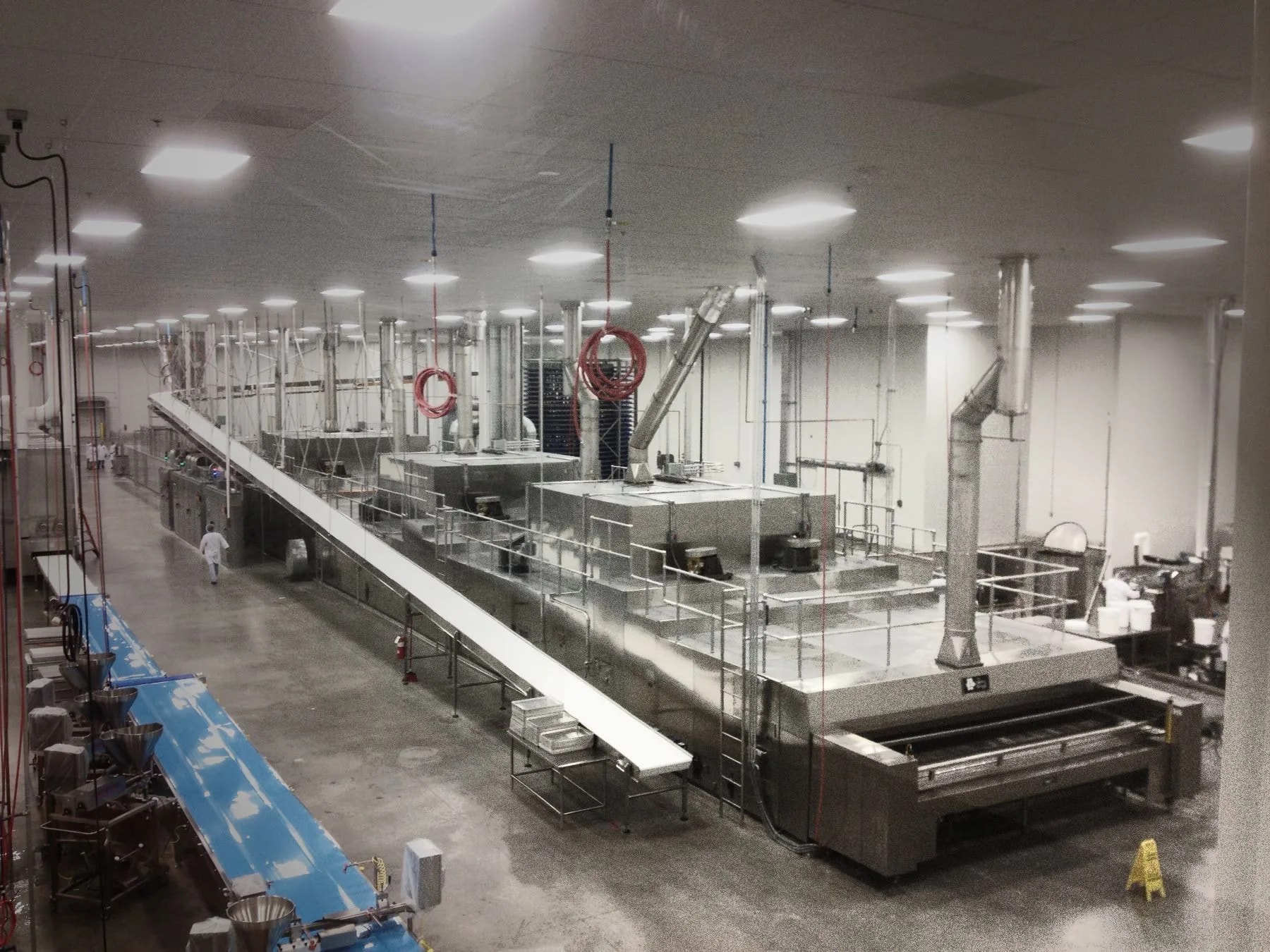

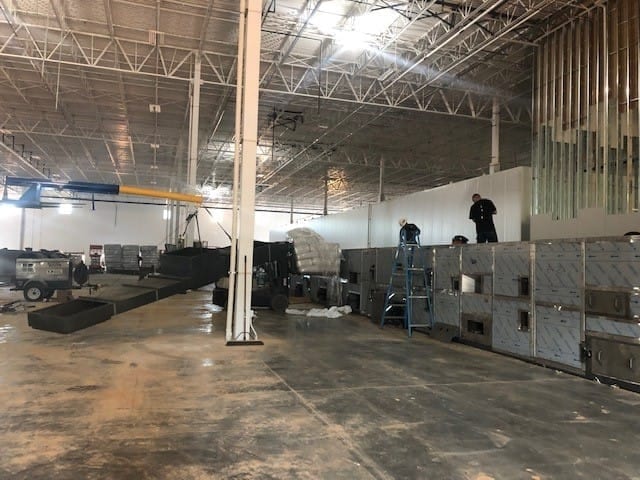

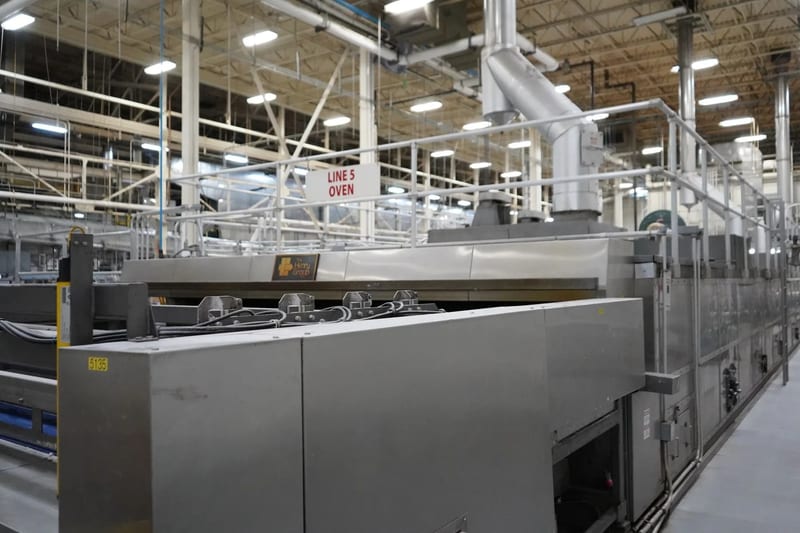

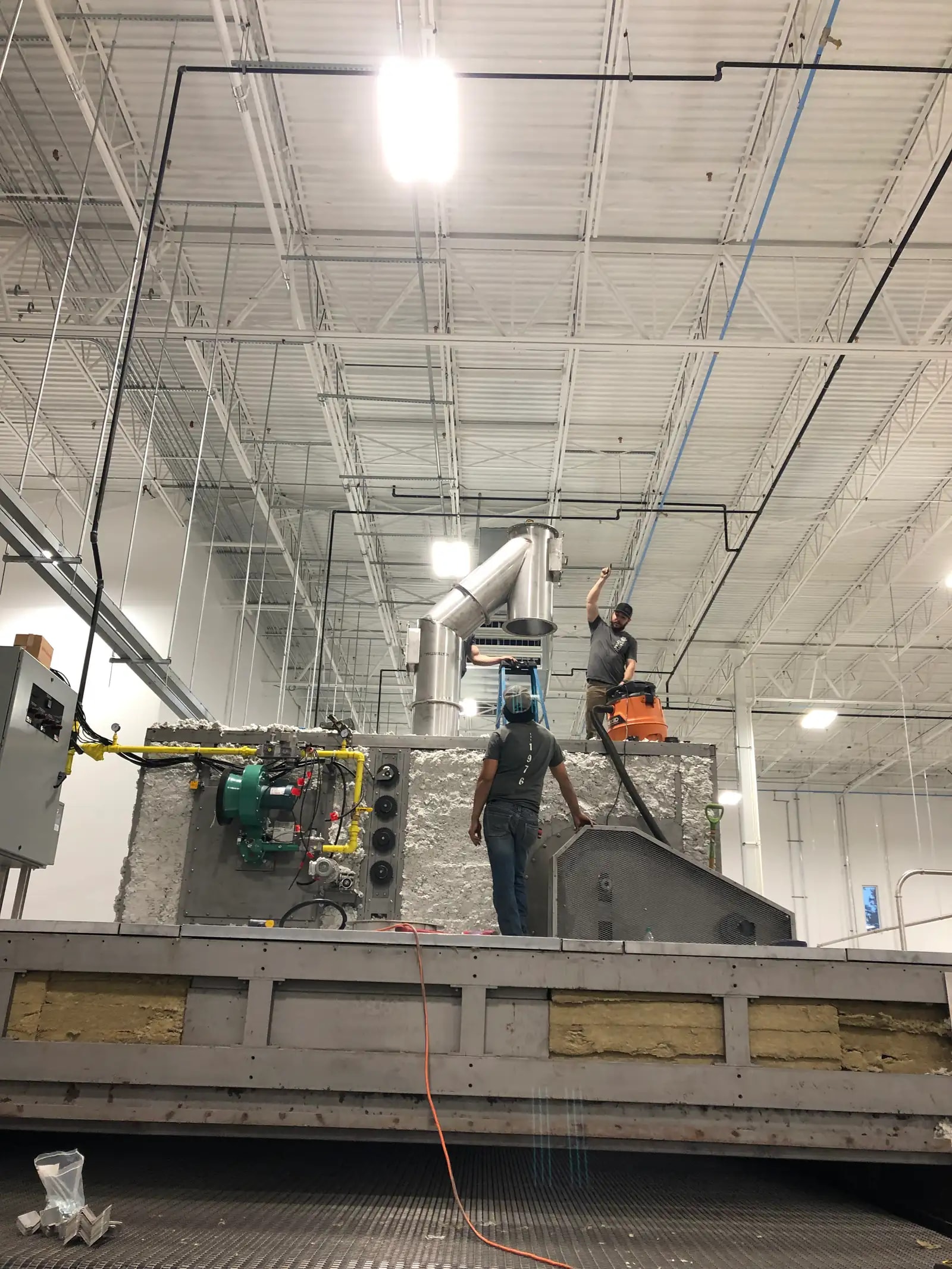

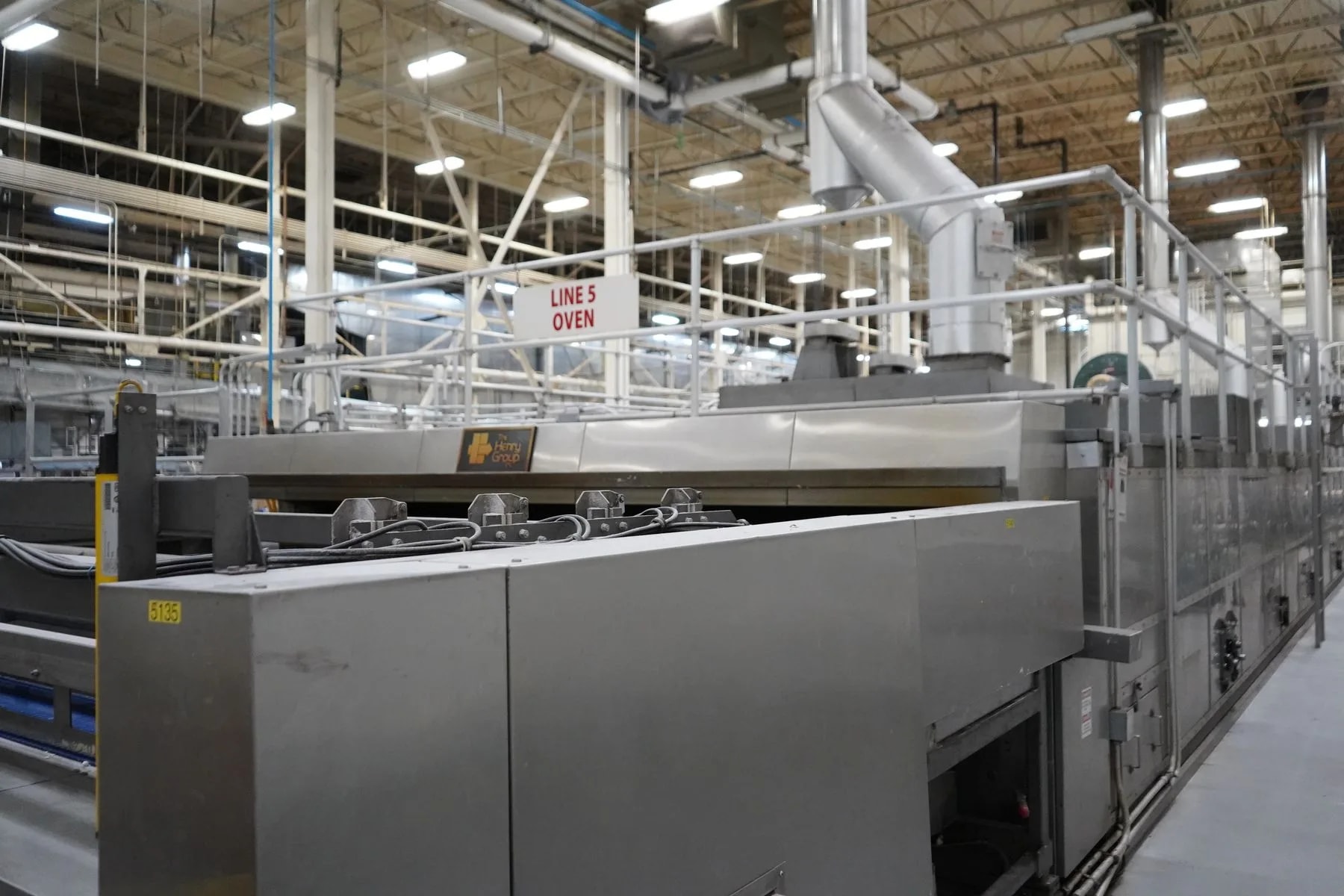

The same shop builds complete production lines. For Rich Products, THG supplied a complete baking system built around a 100 ft tunnel oven, with an overhead proofing system, conveyors and support equipment.

THG tunnel ovens

Have a drawing to price?

Send the drawing, the material, the quantity and the date you need parts on your dock.
