Custom Metal Fabrication and Welding
When the off-the-shelf piece won’t fit, we build the one that will. THG cuts, forms, machines and welds carbon steel, stainless and aluminum in its own Greenville, Texas shop, about 50 miles northeast of Dallas, to your drawing or to one our engineers on staff draw for your sign-off.
What We Build
- Sheet metal enclosures and control panels: cabinets, housings and covers, with cutouts to your panel layout
- Equipment skids and mounting frames for mechanical and electrical gear
- Structural steel frames, stands and weldments
- Catwalks, access platforms and mezzanines
- Pipe and duct supports, and strut assemblies
- Legacy and obsolete parts, made from the old part or from a drawing when the original manufacturer can’t supply them
- Data center steel: cable tray and ladder rack, hot and cold aisle containment, and seismic and rack brackets, rack bases and anchor brackets (see data center fabrication)
From Drawing to Dock Date
1. Send the drawing
A DXF for flat parts, a STEP file for tube and profile, or a dimensioned print. If all you have is a problem and a tape measure, our engineers on staff draw the part and send it back for your sign-off before anything is cut.
2. We check it before we cut it
Material, tolerance, weld access and how the part installs. Parts are built to the tolerances on your drawing. Most of what goes wrong on a fabrication job is decided at the drawing stage, not at the weld.
3. Quote and schedule
Tell us the material, the quantity and the date you need parts on your dock. Fabrication is scheduled back from that date. For a small job, expect a quote within a business day; a large project can take a couple of days to a week, depending on its size.
4. Cut, form, machine and weld
Laser cutting, press brake forming, CNC machining and welding happen in one building, so parts don’t wait at a second vendor between operations.
5. Fit and inspect
Weldments are checked against the print before they ship: dimensions, weld quality, and fit against mating parts where we have them.
6. Prep and ship
Parts are deburred, match-drilled and match-marked, with hardware, so they go together on site the way they went together on the bench. They ship palletized to your dock, and installation is available as a separate service.
Custom Welding and Weldments

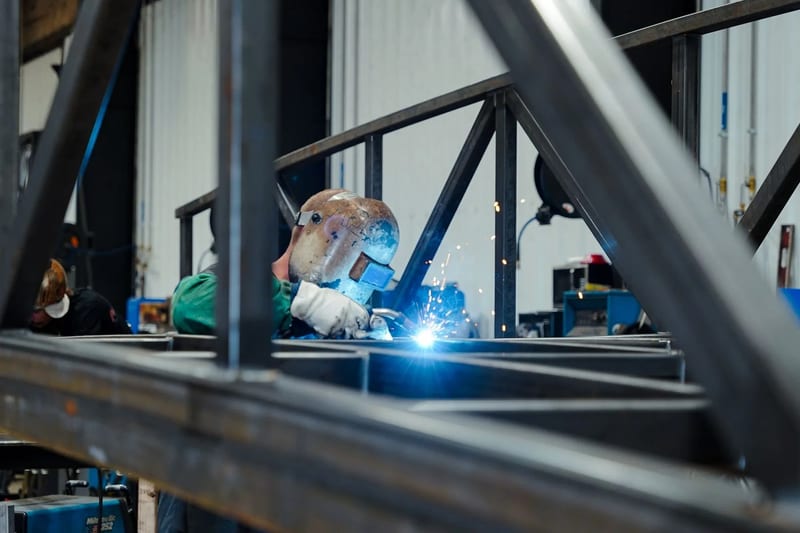

THG’s welders turn cut and formed parts into finished weldments in the same building, with MIG, TIG, stick and flux-core welding: frames, skids, stands, troughs and assemblies in carbon steel, stainless and aluminum. Tube parts come off the tube laser with the copes, holes and weld prep already cut, so frames fit up square. Welder qualification to AWS D1.1 is in progress.
Structural Steel and Miscellaneous Metals
Structural steel frames, stands and supports, catwalks, access platforms and mezzanines, pipe and duct supports and strut assemblies, built to your drawing. Structural coating is done by an outside coating partner, and installation by THG’s field crew is available as a separate service.
Materials and Equipment
Carbon steel, stainless and aluminum, in sheet, plate, tube and structural shapes. THG keeps A36 carbon steel, 304 and 316 stainless, and 5052 and 6061 aluminum in stock or can get them quickly, with sheet from thin gauge up to 3/4 in usually on the rack. Round and square tube vary and are usually ordered in for the job.
- Two 6 kW TRUMPF fiber lasers: a TruLaser 1040 for flat sheet and plate and a TruLaser Tube 7000 for tube and profile (see laser cutting)
- A 12 ft press brake for forming, in the same building
- Haas CNC machining: a VF-3 vertical machining center and two Y-axis turning centers, an ST-20Y and an ST-35Y, with a bar feeder for repeat parts
- Manual lathes and two Haas knee mills for legacy and one-off parts
- MIG, TIG, stick and flux-core welding in the same shop, so cut and formed parts become finished weldments without leaving the building
Coating and Installation
Structural coating is done by an outside coating partner. Tell us the coating spec when you request a quote, and it is scheduled with the fabrication.
Installation is a separate service, quoted on its own. Some customers take the parts on a pallet and install them with their own crew; others have THG’s field crew set and anchor them. Either way, the parts are designed by a shop that works alongside an installation crew.
Common questions
Do you build to our drawing, or can you design it?
Either. Send a print, a DXF or a STEP file and we build to it. If you only have the problem and the measurements, our engineers on staff draw it, send it back for your sign-off and build from that. When a project requires stamped drawings, an outside licensed PE firm stamps them.
Do you take one-off parts or only production runs?
Both. A single obsolete bracket and a repeating run of containment panels go through the same shop and are quoted the same way.
Do you install what you fabricate?
We can. Installation is a separate service, quoted on its own. Some customers use THG for fabrication only; others have our field crew install.
Do you paint or coat parts?
Structural coating is done by an outside coating partner. Include the coating spec with your drawing and we schedule it with the job.
Do you build steel bridges?
Yes. Prefabricated steel bridges are built in the same shop under THG’s Roadrunner Bridge brand.
How do I get a fabrication quote?
Call 800-356-7591 or request a quote and attach the drawing: a PDF, DXF, DWG or STEP file, up to 4 MB in total. Tell us the material, the quantity and when you need parts on your dock. For a small job, expect a quote within a business day; a large project can take a couple of days to a week.
Have a drawing to price?
Send the drawing, the material, the quantity and the date you need parts on your dock. No drawing? Our engineers on staff can draw it.
